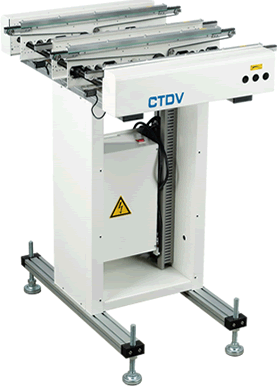

CTDV 双轨输送机


Responsive image
主要功能
  • 特有衔接端滚轮设计,便与其他设备衔接
  • 使一台输送机具备2台输送机的功能
  • 可符合市面上大多数双轨主机的需求

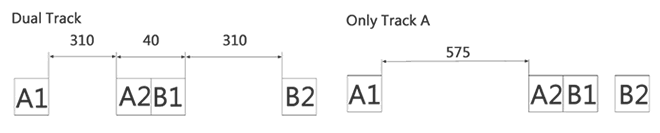

Model Dual track Only track A
PCB size(mm)  (LxW) 80x50~500x310 80x50~550x575
Working high(mm) 920± 30  (std.)
PCB feeding time 6.0 sec (pcb=80x50)
Power source AC  110/220V ± 10V   1φ50 / 60 Hz
Machine dimension(mm)
 (Unclude tower light)
 *Other spec. on request
L 600~1500
W 830
H 950
Machine weight(kg) 80
Electric Current Capacity(KVA) 0.3
